- Complex part manufacturing
See the Whole Part.
Then Plan the Route.
Part of Dawnmill’s Manufacturing Solutions.
Complex parts are rarely difficult for one reason. Dawnmill reviews geometry, datums, tolerance relationships, material behavior, process access and inspection as one connected manufacturing problem.
- Complex Geometry
- Tight Relationships
- Multiple Setups
- Verification Planning

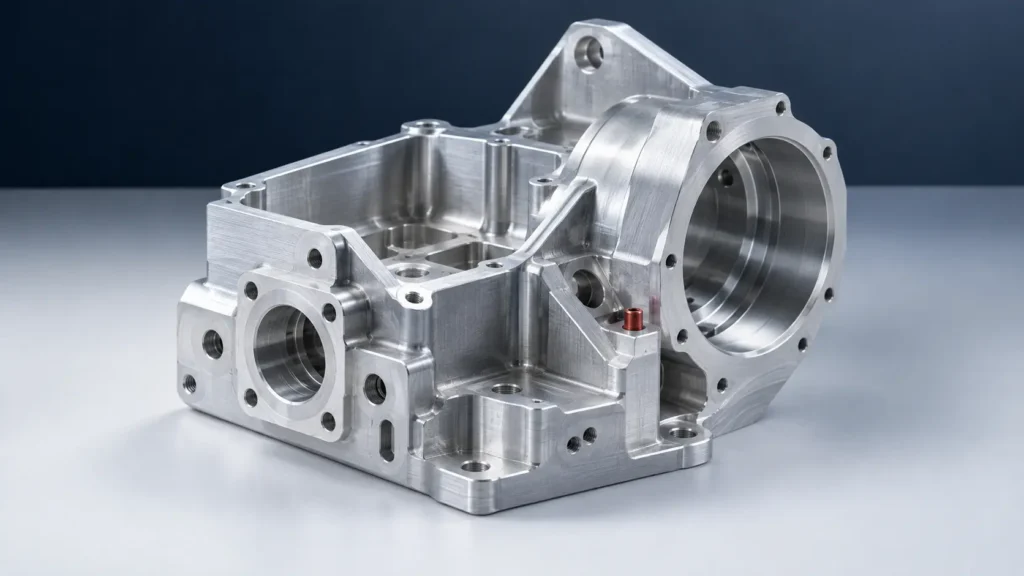

AI concept · compact robotics and automation housing · multi-face CNC, difficult-access and inspection-planning context
- Typical complexity signals
Not Every Difficult Part
Looks Difficult at First.
These conditions often indicate that the project benefits from an integrated manufacturing review.
Geometry
- Deep or narrow features
- Multi-face relationships
- Thin walls and sensitive sections
Interfaces
- Locating and mating features
- Sealing or mounting surfaces
- Concentric or positional relationships
Process Mix
- CNC machining with EDM
- Secondary operations and finishing
- Several controlled handoffs
Verification
- Limited inspection access
- Critical GD&T relationships
- Project-specific reporting
- Technical specifications & process limits
Define the Range.
Then Commit.
The range below shows what matters for this topic. The applicable process, limits and verification method are confirmed against the actual drawing, material and final condition.
Project-specific values confirmed before production.
Part scale Primary focus on compact, hand-sized to small desktop-sized precision components; exact envelope confirmed from the drawing and process route. | Best fit Multi-sided geometry, interacting tolerances, difficult access and more than one manufacturing process. |
Materials Aluminum 6061 / 6063 / 7075, stainless 304 / 316, OFHC copper, brass, Kovar and engineering plastics. | Boundary Dawnmill reviews manufacturability; product function and released design remain with the customer. |
- Manufacturing review
Questions First.
Assumptions Later.
We focus on the decisions that materially change workholding, sequence, process choice and verification.
DFM REVIEW
Datum Strategy
- Which references control the important relationships and how they remain available through production.
- How the component can be supported while difficult features are machined or completed by EDM.
PROCESS CONTROL
Part Stability
- Where material removal, wall thickness or heat may influence dimensional stability.
- Define datums, workholding, access and coordinated operations.
INSPECTION & RECORDS
Drawing & Revision Control
- Work from the confirmed release and connect open questions to the correct revision.
- Identify where staged checks protect features before later operations.
PROCESS LOGIC
Clarify. Sequence. Control. Verify.
The route is built around the finished component and the released requirement—not around a preferred machine in isolation.
01
Read the Part
02
Plan the Sequence
03
Control the Route
04
Verify the Result
- Project control
Keep the Requirement
Connected to the Part.
Complexity becomes manageable when the released requirement, process decisions and verification records remain aligned.
REPRESENTATIVE ENGINEERING SCENARIO
Multi-sided
equipment housing
Illustrative review scenario—not a published customer case. Customer parts and records remain confidential.
Challenge
Deep pockets, several datum-linked faces and a finished sealing interface.
Process Strategy
Establish functional datums, machine accessible geometry, add EDM only where justified, then complete the finishing route.
Inspection
Stage critical relationships before finishing and confirm the agreed final-condition inspection.
Result
Target: a practical complex part manufacturing route connected from review to delivered component.
CAPABILITY EVIDENCE
In-house CNC milling, turning, five-axis, mill-turn and EDM
CMM and optical measurement available
CMM or optical results, material certificates, FAI and CoC are available when agreed for the project.
- Related Solutions
Continue Without
Returning to the Menu.
Multi-Process Manufacturing
Coordinate machining, special processes, finishing and inspection through one route.
CNC Machining
Review milling, turning, five-axis and mill-turn options around the geometry.
Engineering Support
Bring drawing review and process planning forward before production.
- Questions before the RFQ
Clear the
Important Doubts.
Four topic-specific answers keep the next step practical and direct.
Can Dawnmill redesign a difficult component?
We provide practical manufacturability feedback and process options. Product design authority, functional validation and final approval remain with your team.
What should I send for an initial review?
The current 2D/3D files, material, quantity, critical interfaces, finish and required inspection records are the most useful starting point.
When is Complex Part Manufacturing the right fit?
It is a fit when the project conditions described on this page match the geometry, part-number mix, production stage and control needs shown in your RFQ.
Can the route include qualified secondary-process partners?
Yes. Dawnmill keeps core machining and EDM connected in-house and coordinates selected finishing or heat-treatment processes with qualified partners where required.
Share the drawing, quantity and critical requirements. We’ll review the complete manufacturing problem and map the next step.
Factory, equipment and inspection photos show real Dawnmill facilities. AI-generated visuals are used only for confidential component and application concepts tied to Dawnmill’s served industries and available manufacturing processes; they are not customer parts, factory evidence or test records.
